รายละเอียดสินค้า:
|
| Features: | Automatic carton forming, opening, filling, sealing, and batch number printing | Application: | Food, Beverage, Commodity, Medical, Chemical, |
|---|---|---|---|
| Packaging Material: | Paper | Driven Type: | Electric |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Machine Weight: | 1400kg |
| Power Supply: | 220V/380V, 50Hz/60Hz | Packaging Detail: | Normal Export Wooden Case |
| Working Noise: | <75dB | Orgin: | Zhejiang,China |
| Function: | High Efficiency | Output: | Max.80 boxes/min |
| Automatic Grade: | Automatic |

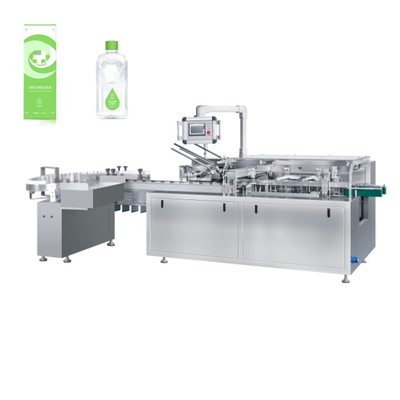

Introduction:
This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for blister package product, adjust automatic feeding structure conveniently, and setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically stop when machine is overload.
4. Automatically reject lacking of package product and leaflet.
5. Automatically display trouble, Alarm and count finished products.
6. Stable performance, operation is easy.
Appliaction:
It is suitable for ALU-PVC blister, ALU-ALU blister and similar product.
It is suitable for packing sachet, condom, adhesive bandage, soft alu strip, plaster, coffee bag and similar product.
It is suitable for medicine bottle (round bottle, flat bottle), eyedropper bottle and similar product.
It is suitable for soap, toothpaste, soft tube, pillow product, hardware and similar product.
Main technical parameters:
| Cartoning speed |
65 cartons/ min (according to the speed of the tube filling machine) |
|
| Carton | Quality requirements | 250-350g/㎡ (depend on the size of the carton) |
| Dimension range (L×W×H) | (100-185) mm× (30-70) mm× (25-45) mm | |
| Leaflet | Quality requirements | 60-70 g/㎡ |
| Unfolded size range (L×W) | (80-250)㎜×(90-170)㎜ | |
| Folding range (L×W) | 1-4 (Fold) | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 380V 50HZ | |
| Main motor power | 1.5kw | |
| Dimension (L×W×H) | 3100mm×1100mm×1550mm | |
| Machine net weight | About 1400kg | |

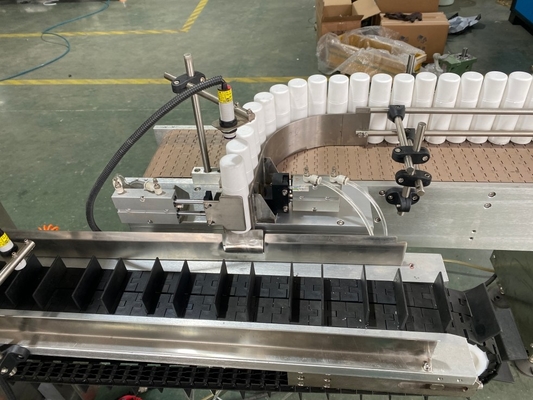

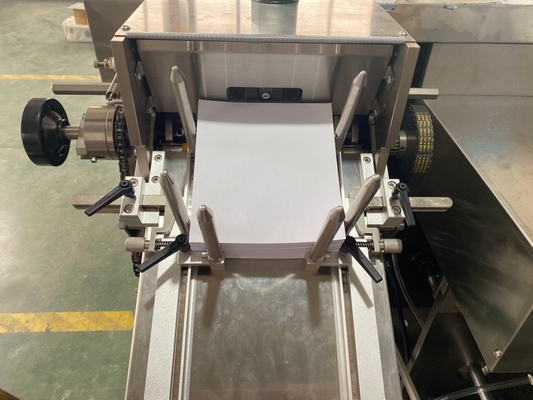

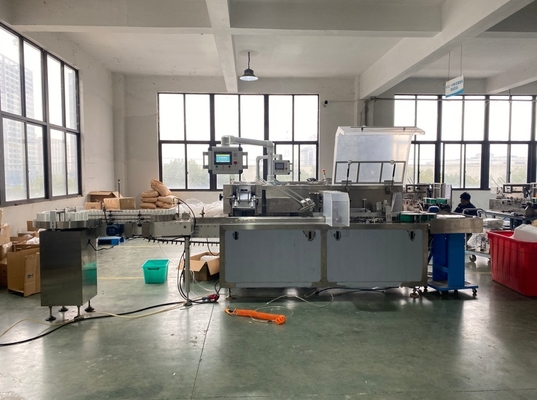

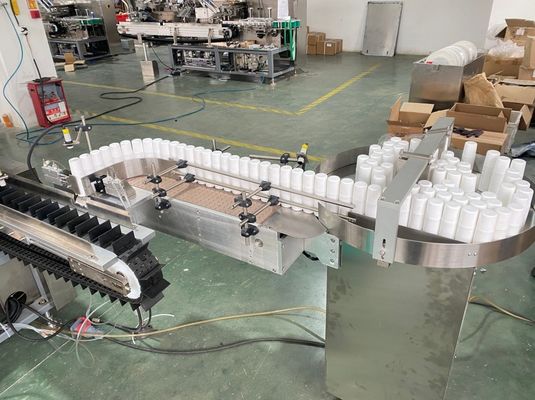

Details Photos:
1.what's the delivery time?
it's about 30 working days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
